Often times your distressed foundation is the result of poor drainage and soil conditions around the foundation. These conditions are usually a major contributor to the movement of the soil under the slab and/or foundation. Improving the drainage can help to stabilize the foundational soils and therefore stabilize the residence.

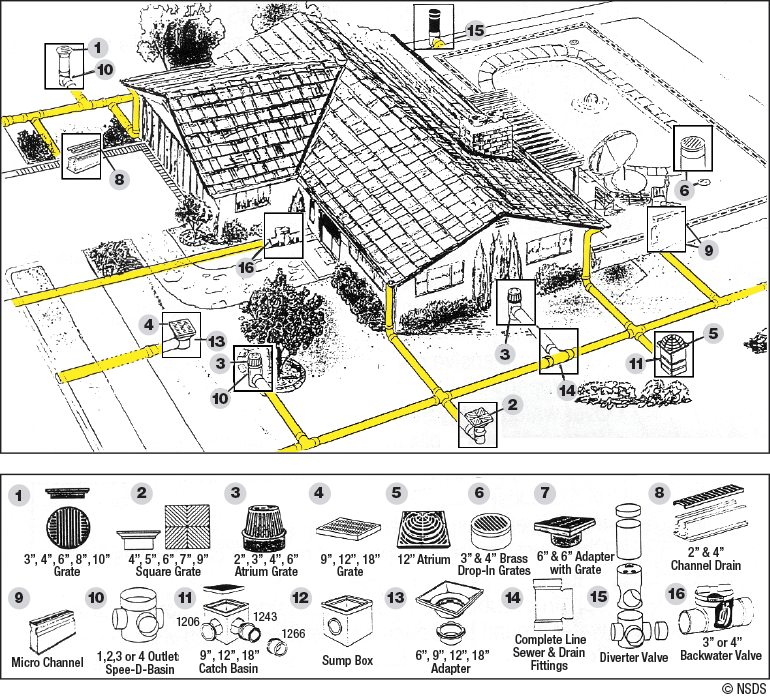

High Impact Plastic Drainage Systems are inexpensive, easy to install, light weight and will not rust or need painting. Properly installed, they need little or no maintenance. These products are designed to fit either corrugated pipe or sewer and drain pipe and fittings. Some of our grates, basins, and channel drains are load rated for light vehicular traffic.

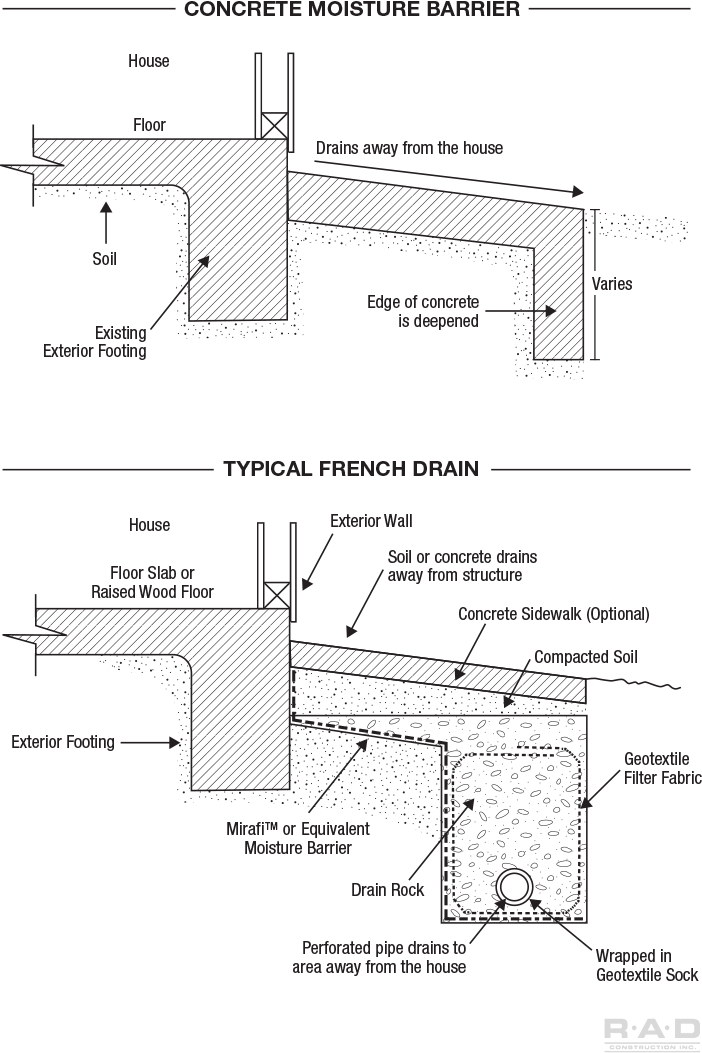

Proposed yard grade drains away from house approximately 5 feet into swale made of earth or concrete discharging to a safe location away from foundation.

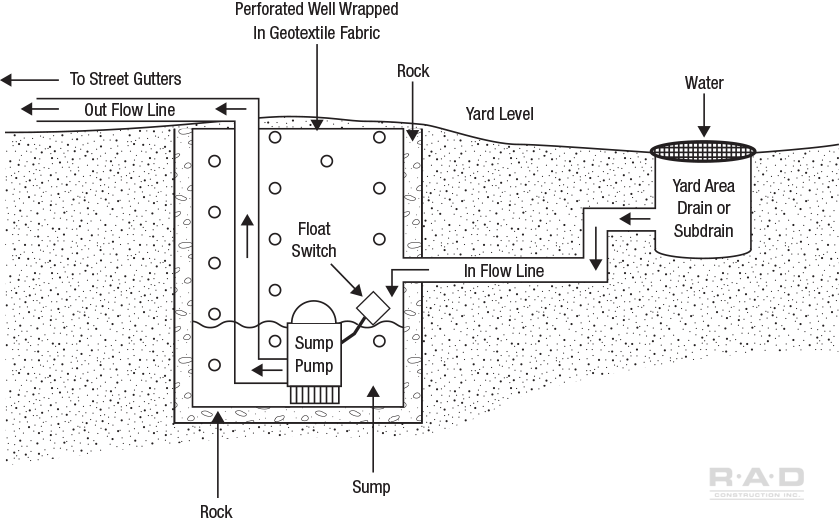

Sump Pumps are typically used when water cannot be transported away from the house using the natural forces of gravity.
Water Flows from collection drains into plastic sump which will pump water away from the house.
